Precision Plasma LLC

LINK TO SUPPORTING DOCUMENTATION

The design incorporates Speed Demon size 35 side rails and (4) 3 roll carriages

Speed Demon is a linear rail imported by
LM76.com. It can be purchased from
automation4less.com or many other power
transmission distributors. We do not include
the rail with our kit because we do not get a
better price that what is shown on the
automation4less website. NO EXCEPTIONS.

LINK TO SPEED DEMON BROCHURE

NOTE: (2) 3 ROLL CARRIAGES ARE USED ON EACH SIDE TO MAKE A 6
ROLL CARRIAGE. THE WIPERS BETWEEN THE BLOCKS NEED TO BE
REMOVED AND SAVED AS REPLACEMENTS FOR THE OUTSIDE WIPERS. ...

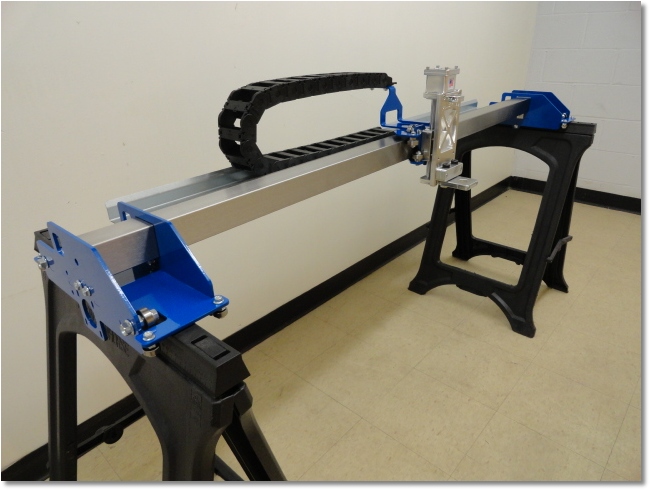

SD-35 gantry kit pricing does not include frame or rails.

4x4 $3295
5x5 $3395
4x8 $3395
5x10 $3495
+ $100 shipping

Includes:
Extrusion kit drop shipped from 8020 inc.
Pacfic Bearing Integral V linear rail across gantry
3.5:1 belt reduction units
JFLO cable carrier
Gear rack, gears, and fabricated / powdercoated brackets.

NOTE: SHIPS COMPLETELY UNASSEMBLED IN MULTIPLE BOXES. CUSTOMER MUST
ASSEMBLE GANTRY AND FABRICATE FRAME AND BED FROM PRINTS SUPPLIED VIA
DOWNLOAD LINK. CABLE TRACK SIDE SUPPORT INTEGRATED INTO FRAME.

THE GANTRY KIT PRICING ABOVE DOES NOT INCLUDE A Z AXIS.
SEE Z AXIS PAGE FOR OPTIONS
